Product Summary

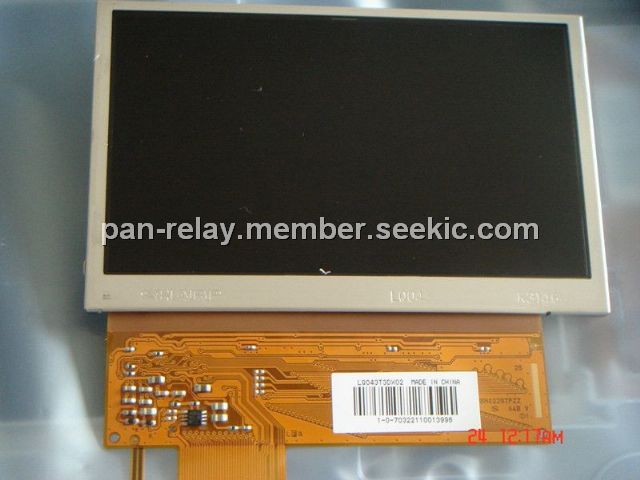

The LQ043T3DX02 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The LQ043T3DX02 is composed of a color TFT-LCD panel, driver ICs, Input FPC, a back light unit and a touch panel. Graphics and texts can be displayed on a 480×3×272 dots panel with about 16million colors by supplying 24bit data signals(8bit×RGB), Four timing signals, logic (typ. +3.3V), analog (typ. +5V) supply voltages for TFT-LCD panel driving and supply voltage for back light.
Parametrics
LQ043T3DX02 absolute maximum ratings: (1)Input voltage:-0.3 to VCC+0.3V; (2)3.3 V Power supply voltage:0 to +4.5V; (3)5 V Power supply voltage:0 to +6.0V; (4)Temperature for storage:-30 to +85℃; (5)Temperature for operation:-10 to +70℃; (6)LED Input electric current:35mA ; (7)LED electricity consumption:123mW.
Features
LQ043T3DX02 features: (1)Input voltage (Low):0.2V ; (2)Input voltage (High):0.8V ; (3)Input current (Low):4.0μA ; (4)Input current (High):4.0μA ; (5)Permissive input ripple voltage:100mVp-p.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ043T3DX02 |
Sharp Microelectronics |
TFT Displays & Accessories 4.3" 480x272 ASV TFT LCD |
Data Sheet |
Negotiable |
|
||||||||||||
