Product Summary

The JW1FSN-DC12V is a compact pc board power relay.

Parametrics

JW1FSN-DC12V absolute maximum ratings: (1)Nominal operating power: 530 mW; (2)Initial surge voltage between contacts and coil*2 Min: 10,000 V; (3)Operate time(at nominal voltage) Max: 15 ms; (4)Release time (without diode)(at nominal voltage) Max: 5 ms; (5)Ambient temp: –40℃ to +85℃; (6)Max. operating speed (at rated load): 6 cpm; (7)Initial insulation resistance: Min 1,000 MW at 500 V DC.

Features

JW1FSN-DC12V features: (1)Miniature package with universal terminal footprint; (2)High dielectric withstanding for transient protection: 10,000 V surge in ms between coil and contact; (3)Sealed construction; (4)Class B coil insulation types available; (5)TV rated (TV-5) types available (only for 1 Form A type); (6)VDE, SEMKO, SEV, FIMKO, TV-5 also approved.

Diagrams

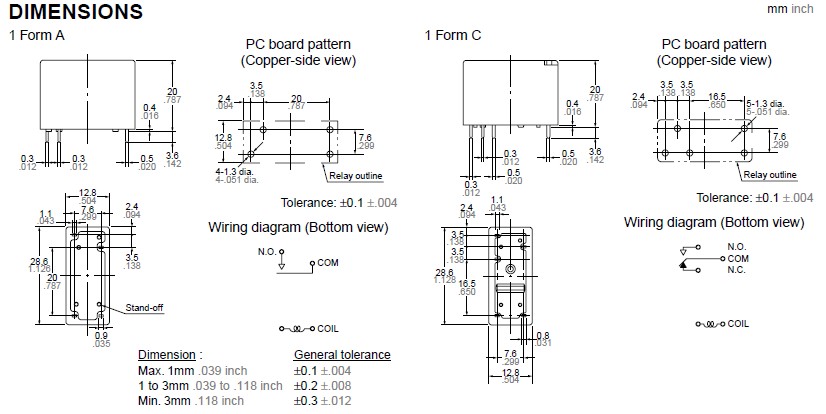

JW1FSN-DC12V dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
JW1FSN-DC12V
JW1FSN-DC12V
Panasonic Electric Works
General Purpose / Industrial Relays 10A 12VDC SPDT SEALED PCB
Data Sheet
0-1: $1.96
1-25: $1.83
25-50: $1.64
50-100: $1.37
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
JW1FSN-B-DC12V
JW1FSN-B-DC12V
Panasonic Electric Works
General Purpose / Industrial Relays 10A 12VDC SPDT NON-LATCHING
Data Sheet
0-1: $1.94
1-25: $1.82
25-50: $1.63
50-100: $1.36
JW1FSN-B-DC18V
JW1FSN-B-DC18V
Panasonic Electric Works
General Purpose / Industrial Relays 1 Form A 10A 250VAC 18V
Data Sheet
0-1: $1.85
1-25: $1.69
25-50: $1.51
50-100: $1.28
JW1FSN-B-DC24V
JW1FSN-B-DC24V
Panasonic Electric Works
General Purpose / Industrial Relays 10A 24VDC SPDT NON-LATCHING
Data Sheet
0-1: $1.67
1-25: $1.53
25-50: $1.40
50-100: $1.30
JW1FSN-B-DC48V
JW1FSN-B-DC48V
Panasonic Electric Works
General Purpose / Industrial Relays 1 Form A 10A 250VAC 48V
Data Sheet
0-1: $2.20
1-25: $2.01
25-50: $1.80
50-100: $1.52
JW1FSN-B-DC5V
JW1FSN-B-DC5V
Panasonic Electric Works
General Purpose / Industrial Relays 10A 5VDC SPDT NON-LATCHING
Data Sheet
0-1: $1.83
1-25: $1.67
25-50: $1.49
50-100: $1.39
JW1FSN-B-DC6V
JW1FSN-B-DC6V
Panasonic Electric Works
General Purpose / Industrial Relays 1 Form A 10A 250VAC 6V
Data Sheet
0-1: $1.99
1-25: $1.83
25-50: $1.63
50-100: $1.39
