Product Summary

The AGQ200A4H is a 2A Ultra small package & Flat type relay. The applications of it are Telephone switchboard, Telecommunications equipment, Security, Measurement equipment, Consumer electronic and audio, visual equipment.

Parametrics

AGQ200A4H general specifications: (1)Contact Form:DPDT (2 Form C); (2)Contact Rating (Current):2A; (3)Switching Voltage:125VAC, 110VDC - Max; (4)Coil Type:Non Latching; (5)Coil Current:31mA; (6)Coil Voltage:4.5VDC; (7)Turn On Voltage (Max):3.38 VDC; (8)Turn Off Voltage (Min):0.45 VDC; (9)Mounting Type:Surface Mount; (10)Termination Style:Gull Wing; (11)Packaging:Tube; (12)Contact Material:Silver Palladium (AgPd), Gold (Au); (13)Operate Time:4ms; (14)Release Time:4ms; (15)Coil Power:140 mW; (16)Coil Resistance:145 Ohms; (17)Operating Temperature:-40℃ to 85℃; (18)Lead Free Status: Lead Free; (19)RoHS Status:RoHS Compliant.

Features

AGQ200A4H features: (1)High capacity: 2 A; (2)Compact flat body saves space; (3)High sensitivity single side stable type (Nominal operating power:100mW) is available; (4)Outstanding surge resistance; (5)The use of twin crossbar contacts ensures high contact reliability; (6)Increased packaging density; (7)Nominal operating power: 140 mW; (8)Outstanding vibration and shock resistance; (9)Sealed construction allows automatic washing.

Diagrams

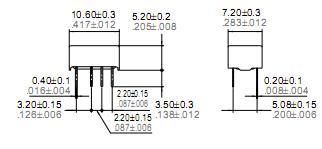

AGQ200A4H package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AGQ200A4H
AGQ200A4H

Panasonic Electric Works

Low Signal Relays - PCB 1A 4.5VDC DPDT NON-LATCHING SMD

Data Sheet

0-1: $1.90
1-25: $1.84
25-50: $1.79
50-100: $1.66
