Product Summary

The JY-24H-K-UL is a power relay.

Parametrics

JY-24H-K-UL absolute maximum ratings: (1)Maximum Carrying Current: 5 A; (2)Maximum Switching Power: 750 VA, 90 W; (3)Maximum Switching Voltage: 250 VAC, 150 VDC; (4)Maximum Switching Current: 3 A; (5)Minimum Switching Load: 0.1 mA 100 mVDC.

Features

JY-24H-K-UL features: (1)UL, CSA, VDE recognized; (2)High sensitivity and low power consumption; (3)High isolation; (4)Wide operating range; (5)DIL pitch terminals; (6)Plastic sealed type; (7)Socket mounting type and socket available; (8)Compatible with solid state relays type SJ in size and pin (terminal) arrangement; (9)RoHS compliant since date code: 0514-.

Diagrams

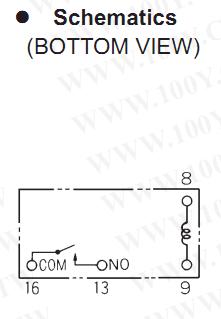

JY-24H-K-UL schematic

JY-24H-K
JY-24H-K
Fujitsu
General Purpose / Industrial Relays Power 5A 24VDC
Data Sheet
0-1: $1.79
1-100: $1.52
100-500: $1.30
500-1000: $1.19
JY-24W-K
JY-24W-K
Fujitsu
General Purpose / Industrial Relays POWER
Data Sheet
0-1: $1.65
1-100: $1.40
100-500: $1.20
500-1000: $1.10
JY-24-K
JY-24-K
Fujitsu
General Purpose / Industrial Relays POWER
Data Sheet
0-120: $1.29
120-500: $1.10
500-1000: $1.01
JY-24HE-K
JY-24HE-K
Fujitsu
General Purpose / Industrial Relays POWER
Data Sheet
0-1: $1.79
1-100: $1.52
100-500: $1.30
500-1000: $1.19
