Product Summary

The js12-k is a power supply, 1 pole—8 A (medium load control). It is featured with UL class B (130℃) coil wire insulation, low profile and space saving. It is belongs to JS series. With very low power consumption, the nominal power is from 220 to 290 mW at the temperature of 20℃, and the operate power is range from 110 to 140 mW at the same condition.

Parametrics

js12-k specification: (1)Arrangement: 1 Form C (SPDT), 1 Form A (SPST-NO); (2)Material: 0.3μ Ag plated, 3μ Ag plated; (3)Resistance (initial): Max. 100mΩ 1A, 6VDC) Max. 30mΩ (1A 6VDC); (4)Rating: 8A 250 VAC / 24 VDC; (5)Max. carrying current: 10A; (6)Max. switching power: 2,000 VA / 192 W; (7)Max. switching voltage: 400 VAC/ 150 VDC; (8)Min. switching load: 100 mA 5 VDC 10 mA 5 VDC.

Features

js12-k features: (1)UL, CSA, VDE, SEV, SEMKO, FIMKO, NEMKO, DEMKO, ÖVE, CQC, BSI compliance; (2)UL class B (130℃) coil wire insulation; (3)1 form A (SPST-NO) or 1 form C (SPDT) contact; (4)Low profile and space saving—Height: 12.5 mm —Mounting space: 290 mm2; (5)High sensitivity in small package of Operating power: 11 0 to 140 mW; (6)High sensitivity in small package of Nominal power: 220 to 290m W; (7)High isolation in small package of Insulation distance: 8 mm (between coil and contacts); (8)High isolation in small package of Dielectric strength : 5,000 VAC; (9)High isolation in small package of Surge strength: 10,000 V; (10)Plastic materials: —UL 94 flame class V-0, —UL CTI level class 2; (11)Plastic sealed type; (12)Various contact material options; (13)RoHS compliant since date code: 0438B9, 0434R - Please see page 7 for more information.

Diagrams

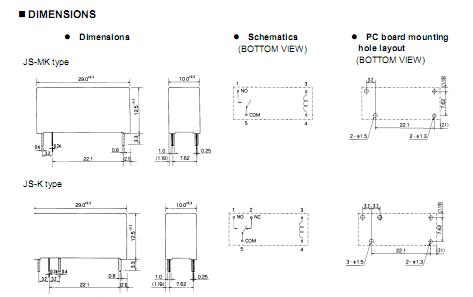

js12-k dimension

JS1200AAQ
JS1200AAQ

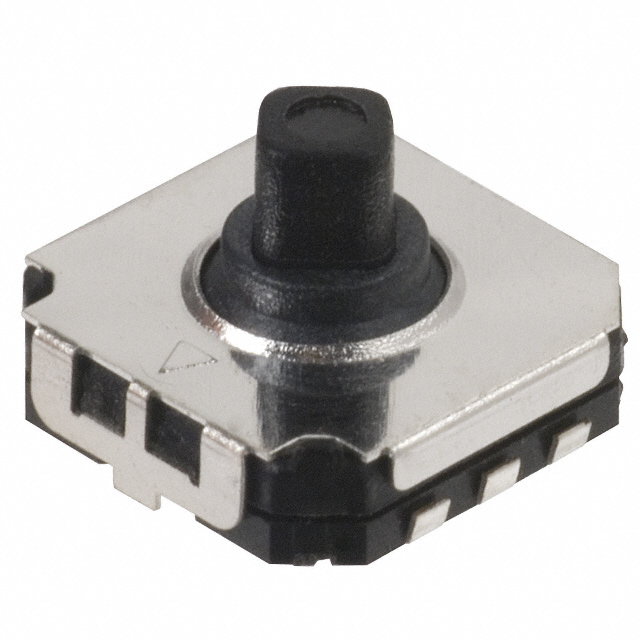

SWITCH NAVIGATION 4DIR CNTR PUSH
