Product Summary

The TX2SA-4.5V is a new pin layout (LT type) added relay with broad lineup and AC 2000 V breakdown voltage.

Parametrics

TX2SA-4.5V absolute maximum ratings: (1)Switching Voltage: 220VDC Max; (2)Coil Type: Non Latching; (3)Coil Current: 28.1mA; (4)Coil Voltage: 5VDC; (5)Turn On Voltage (Max): 3.75 VDC; (6)Turn Off Voltage (Min): 0.5 VDC; (7)Features: Sealed Fully; (8)Mounting Type: Through Hole ; (9)Termination Style: PC Pin; (10)Packaging: Tube; (11)Contact Material: Silver Palladium (AgPd), Gold (Au); (12)Operate Time: 4ms; (13)Release Time: 4ms; (14)Coil Power: 140 mW; (15)Coil Resistance: 178 Ohms; (16)Operating Temperature: -40℃ ~ 85℃; (17)Lead Free Status: Lead Free.

Features

TX2SA-4.5V features: (1)2,000 V breakdown voltage between contact and coil; (2)Outstanding surge resistance; (3)Nominal operating power: High sensitivity of 140mW; (4)High contact capacity: 2 A 30 V DC 5. Compact size; (5)A range of surface-mount types is also available.

Diagrams

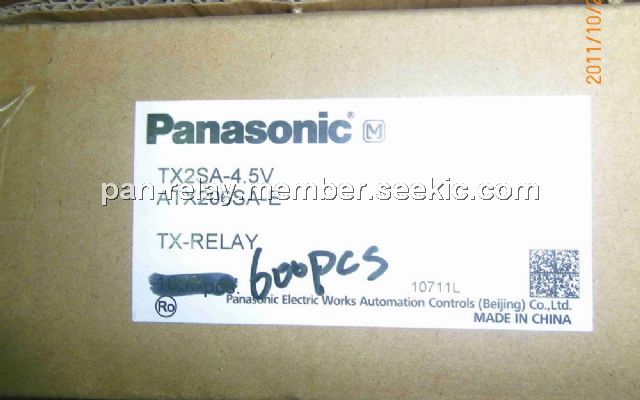

TX2SA-4.5V diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TX2SA-4.5V
TX2SA-4.5V
Panasonic Electric Works
Low Signal Relays - PCB 2A 4.5VDC DPDT NON-LATCHING SMD
Data Sheet
0-1: $2.24
1-25: $2.06
25-50: $1.84
50-100: $1.56
TX2SA-4.5V-1
TX2SA-4.5V-1
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 2A 30VDC 4.5VDC
Data Sheet
0-1: $2.45
1-25: $2.24
25-50: $2.00
50-100: $1.70
TX2SA-4.5V-X
TX2SA-4.5V-X
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 2A 30VDC 4.5VDC
Data Sheet
0-500: $1.37
500-1000: $1.33
1000-2500: $1.28
2500-5000: $1.21
TX2SA-4.5V-1-Z
TX2SA-4.5V-1-Z
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 2A 30VDC 4.5VDC
Data Sheet
0-500: $1.49
500-1000: $1.45
1000-2500: $1.40
2500-5000: $1.32
TX2SA-4.5V-Z
TX2SA-4.5V-Z
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 2A 30VDC 4.5VDC
Data Sheet
0-500: $1.37
500-1000: $1.33
1000-2500: $1.28
2500-5000: $1.21
