Product Summary

The G6A-274P-ST-US-DC12V is a fullly sealed relay with high impulse withstand.

Parametrics

G6A-274P-ST-US-DC12V absolute maximum ratings: (1)Max. operating voltage: 250 VAC; (2)Max. operating current: 2 A; (3)Max. switching capacity: 125 VA; (4)Min. permissible load: 10 μA, 10 mVDC; (5)Rated load: 0.50 A at 125 VAC; (6)Contact material: Ag; (7)Carry current: 3 A.

Features

G6A-274P-ST-US-DC12V features: (1)High sensitivity can be driven by digital circuits; (2)Low-profile design allows use in 12.70 mm PC board rack; (3)Surge withstand voltage meets FCC Part 68 regulation; (4)Units can be mounted side by side due to low magnetic leakage; (5)Special models available for low thermoelectromotive force; (6)Unique moving loop (permanent magnet) armature reduces relay size, magnetic interference, and contact bounce time; (7)Single or dual coil winding types available; (8)RoHS Compliant.

Diagrams

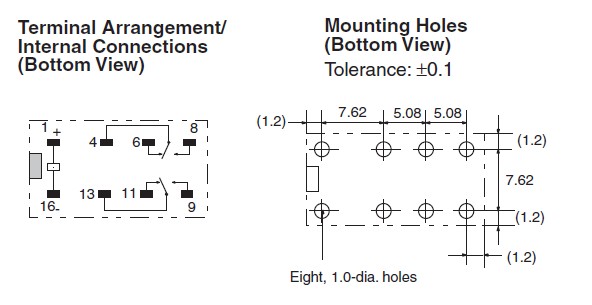

G6A-274P-ST-US-DC24V pin diagram
