Product Summary

The G5V-1-DC24V is a ultra-miniature, highly sensitive SPDT relay for signal circuit.

Parametrics

G5V-1-DC24V absolute maximum ratings: (1)Rated load: 0.50 A at 125 VAC, 1A 24 VDC; (2)Contact material: Ag + Au-Alloy; (3)Carry current: 2 A; (4)Max. operating voltage: 125 VAC, 60 VDC; (5)Max. operating current: 1 A; (6)Max. switching capacity: 62.50 VA, 30W; (7)Min. permissible load: 1 mA, 5 VDC.

Features

G5V-1-DC24V features: (1)High sensitivity: 150 mW nominal power consumption; (2)Small size at 10 H x 7.5 W x 12.5 L mm; (3)Switches from 1 mA to 1 A; (4)Conforms to FCC part 68 requirements for coil to contacts; (5)Fully-sealed construction; (6)Ideal for use in telecommunications, security, and computer/ peripheral equipment; (7)RoHS Compliant.

Diagrams

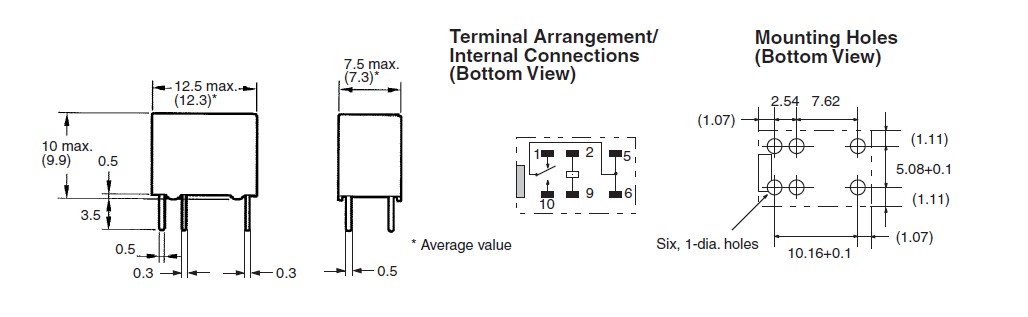

G5V-1-DC24V Package Dimensions
