Product Summary

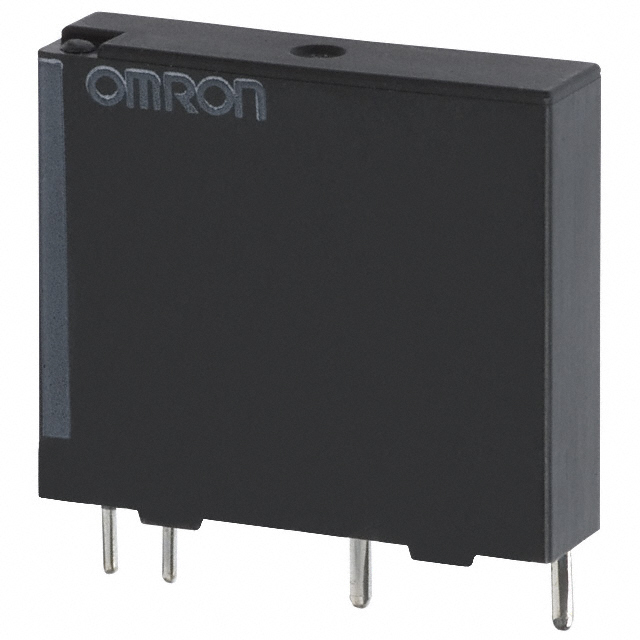

The G6M-1A-DC24V is a PCB Power Relay.

Parametrics

G6M-1A-DC24V absolute maximum ratings: (1)Rated current: 5 mA; (2)Coil resistance: 4800 Ω; (3)Must operate voltage: 75% max. of rated voltage; (4)Must release voltage: 5% min. of rated voltage; (5)Max. voltage: 160% of rated voltage (at 23℃); (6)Power consumption: Approx. 120 mW.

Features

G6M-1A-DC24V features: (1)Slim 5-mm width, and miniature size; (2)Reduced mounting area ideal for high-density mounting.; (3)Highly efficient magnetic circuit for high sensitivity (40% higher than the G6D, with power consumption of 120 mW); (4)Satisfies EN61131-2 and EN61010 requirements; (5)SIL (single-in-line) terminal pitch; (6)UL recognized / CSA certified. VDE approval pending; (7)RoHS Compliant.

Diagrams

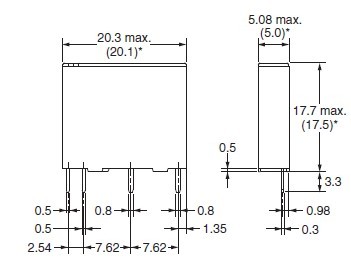

G6M-1A-DC24V Package Dimension

G6M-1A DC12
G6M-1A DC12


RELAY GEN PURPOSE SPST 3A 12V

Data Sheet

0-1: $3.55
1-25: $3.19
25-50: $2.84
50-100: $2.55
100-250: $2.41
250-500: $2.13
500-1000: $1.92
G6M-1A DC24
G6M-1A DC24


RELAY GEN PURPOSE SPST 3A 24V

Data Sheet

0-1: $3.82
1-25: $3.44
25-50: $3.06
50-100: $2.75
100-250: $2.60
250-500: $2.29
500-1000: $2.07
G6M-1A DC5
G6M-1A DC5


RELAY GENERAL PURPOSE SPST 3A 5V

Data Sheet

0-1: $3.55
1-25: $3.19
25-50: $2.84
50-100: $2.55
100-250: $2.41
250-500: $2.13
500-1000: $1.92
G6M-1A-DC12
G6M-1A-DC12

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay SPST-NO Sil 12VDC

Data Sheet

0-1: $3.55
1-25: $3.19
25-50: $2.84
50-100: $2.55
G6M-1A-DC24
G6M-1A-DC24

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay SPST-NO Sil 24VDC

Data Sheet

0-1: $3.74
1-25: $3.44
25-50: $3.05
50-100: $2.75
G6M-1A-DC5
G6M-1A-DC5

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay SPST-NO Sil 5VDC

Data Sheet

0-1: $3.38
1-25: $3.19
25-50: $2.84
50-100: $2.55
