TLE4250-2G

Low Dropout Voltage Tracking Regulator, 50 mA Output Current Capability, Overtemperature Protection, SMD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.00

PartNumber:: TLE4250-2G

Brand:: Infineon Technologies AG - Infineon | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-01

From Other Seller

Part Number:TLE4250-2G
US $0.50 - 1.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

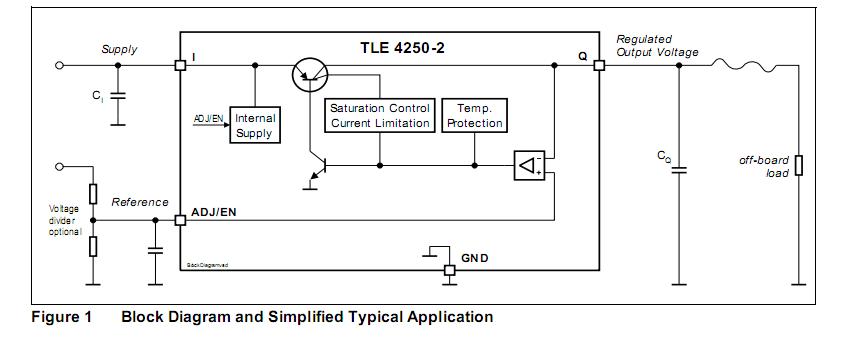

The TLE4250-2G is a monolithic integrated low dropout voltage tracker in a tiny SMD package PG-SCT595-5 with excellent thermal resistance. The TLE4250-2G is designed to supply off-board loads (e.g. sensors) in automotive environment. The TLE4250-2G protects itself in case of overload, overtemperature, reverse polarity as well as output short circuit to battery and ground.

Parametrics

TLE4250-2G absolute maximum ratings: (1)Input voltage:-42V to 45V ; (2)Output voltage:-1V to 40V ; (3)Adjust / Enable Input:-0.3V to 40V ; (4)Junction Temperature:-40℃ to 150℃; (5)Storage Temperature:-50℃ to 150℃; (6)ESD Resistivity: HBM:-3kV to 3kV, CDM:-2kV to 2kV.

Features

TLE4250-2G features: (1)50 mA Output Current Capability; (2)Tiny SMD-Package PG-SCT595-5 with lowest thermal resistance; (3)Low Output Tracking Tolerance; (4)Stable with Small Ceramic Output Capacitor; (5)Low Dropout Voltage; (6)Combined Reference / Enable Input; (7)Low Current Consumption in Stand-by Mode; (8)Maximum Input Voltage -42 V ≤ VI ≤ +45 V; (9)Reverse Polarity Protection; (10)Output Short Circuit Proof to Ground and Supply; (11)Overtemperature Protection; (12)Temperature Range -40℃ ≤ Tj ≤ 150℃; (13)Green Product (RoHS compliant); (14)AEC Qualified.
