Product Summary

The G6M-1A-DC12V is a PCB Power Relay.

Parametrics

G6M-1A-DC12V absolute maximum ratings: (1)Rated current: 10 mA; (2)Coil resistance: 1200 Ω; (3)Must operate voltage: 75% max. of rated voltage; (4)Must release voltage: 5% min. of rated voltage; (5)Max. voltage: 160% of rated voltage (at 23℃); (6)Power consumption: Approx. 120 mW.

Features

G6M-1A-DC12V features: (1)Slim 5-mm width, and miniature size; (2)Reduced mounting area ideal for high-density mounting.; (3)Highly efficient magnetic circuit for high sensitivity (40% higher than the G6D, with power consumption of 120 mW); (4)Satisfies EN61131-2 and EN61010 requirements; (5)SIL (single-in-line) terminal pitch; (6)UL recognized / CSA certified. VDE approval pending; (7)RoHS Compliant.

Diagrams

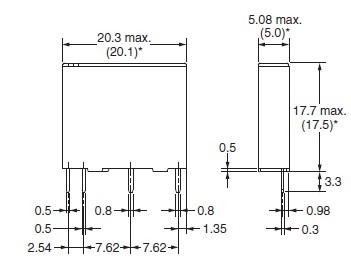

G6M-1A-DC12V Package Dimension

G6M-1A DC12
