Product Summary

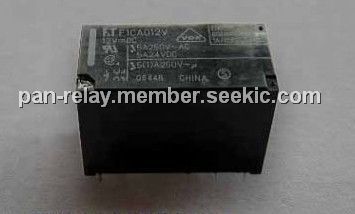

The FTR-F1CA012V is a power relay.
Parametrics
FTR-F1CA012V absolute maximum ratings: (1)Arrangement: 2 form A (DPST-NO), 2 form C (DPDT) 2 form A (DPST-NO); (2)Material: Gold plate silver alloy; (3)Style: Single; (4)Resistance (initial): Maximum100 mΩ (at 1 A 6 VDC); (5)Rating (resistive): 5 A 250 VAC/24 VDC; (6)Maximum Carrying Current; 7 A; (7)Maximum Switching Rating: 1,250 VA/120 W; (8)Maximum Switching Voltage: 400 VAC 300 VDC; (9)Maximum Switching Current: 5 A; (10)Minimum Switching Load: 10 mA 5 VDC.
Features
FTR-F1CA012V features: (1)Low profile power relay (height 16.5 mm) employing unique construction; (2)DPST/DPDT 5 A, TV-3 rating available; (3)Higher isolation by employing reinforced insulation costruction: Insulation distance: 8 mm (between coil and contact); Dielectric strength: 5 kV (between coil and contact); Surge strength: 10 kV (between coil and contact); (4)Plastic sealed relay ; (5)Pin configuration compatible to VB/FBR620; (6)UL, CSA, VDE, SEMKO, BSI recognized; (7)Conforms to FIMKO, IMQ, DEMKO (under approval); (8)Environmentally friendly cadmium free contact type is available; (9)RoHS compliant since date code: 0434R.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FTR-F1CA012V |
Fujitsu |
General Purpose / Industrial Relays Low Profile 12VDC |
Data Sheet |
|
|
||||||||||||
