Product Summary

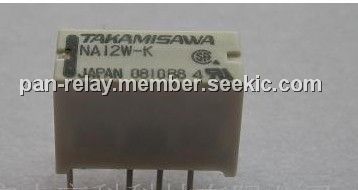

The NA12W-K is a miniature relay.

Parametrics

NA12W-K absolute maximum ratings: (1)Arrangement: 2 form C (DPDT); (2)Material: Gold overlay silver alloy; (3)Style: Bifurcated; (4)Resistance (initial): Maximum 50 mΩ (at 1 A 6 VDC); (5)Rating (resistive): 0.5 A 125 VAC or 1 A 30 VDC; (6)Maximum Carrying Current: 2 A; (7)Maximum Switching Power: 62.5 AV, 30 W; (8)Maximum Switching Voltage: 250 VAC, 220 VDC; (9)Maximum Switching Current: 2 A; (10)Minimum Switching Load: 0.01 mA 10 mVDC.

Features

NA12W-K features: (1)Slim type relay for high density mounting; (2)Conforms to Bellcore specification and FCC Part 68: Dielectric strength 1,500 VAC between coil and contacts; Surge strength 2,500 V between coil and contacts (at 2 × 10 s surge wave); (3)Maximum switching capability - 4.2A, 700VAC; (4)UL, CSA recognized; (5)High sensitivity and low consumption power; (6)High reliability—bifurcated contacts; (7)DIL pitch terminals; (8)Plastic sealed type; (9)RoHS compliant since date code: 0437B8.

Diagrams

NA12W-K dimension
