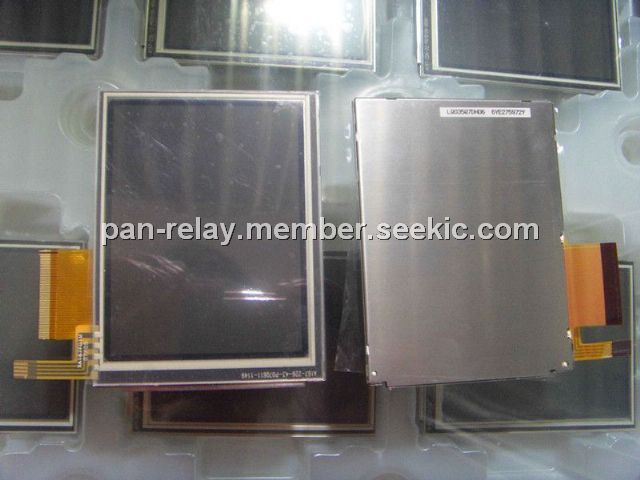

The LQ035Q7DH06 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor), named AD-TFT (Advanced TFT). It is practicable in both transmissive-type and reflection-type modes. It is composed of a color TFT-LCD panel, driver ICs, an FPC, a back light, a touch panel and a back sealed casing. The LQ035Q7DH06 isn’t composed control circuit. Graphics and texts can be displayed on a 240×3×320 dots panel with 262,144 colors by supplying. Optimum view angle is 6 o’clock. An inverted display mode is selective in the vertical or the horizontal direction.
Parametrics
LQ035Q7DH06 absolute maximum ratings: (1)Power supply(source/Analog), VSHA: -0.3 to +7.0V at Ta=25℃; (2)Power supply(source/Digital), VSHD: -0.3 to +7.0V at Ta=25℃; (3)Power supply (gate), VDD: -0.3 to +35.0V at Ta=25℃; (4)Power supply (gate), VDD-VEE: -0.3 to +35.0V at Ta=25℃; (5)Input voltage (Digital), VID: -0.3 to VSHD+0.3V at Ta=25℃; (6)Operating temperature (panel surface),Topp: -10 to 70℃; (7)Storage temperature, Tstg: -25 to 70℃.
Features
LQ035Q7DH06 features: (1)RoHS; (2)Diagonal: 3.5 in; (3)Pixel Density: 240 x 320; (4)Module Size (W x H x T): 65 mm x 86.2 mm x 4 mm; (5)Attached Touch Screen: Yes; (6)Backlighting: White Normally White; (7)Packaging: Bulk; (8)Maximum Operating Temperature: + 70℃; (9)Minimum Operating Temperature: - 10℃; (10)Operating Temperature Range: - 10 to + 70℃; (11)Factory Pack Quantity: 100.
