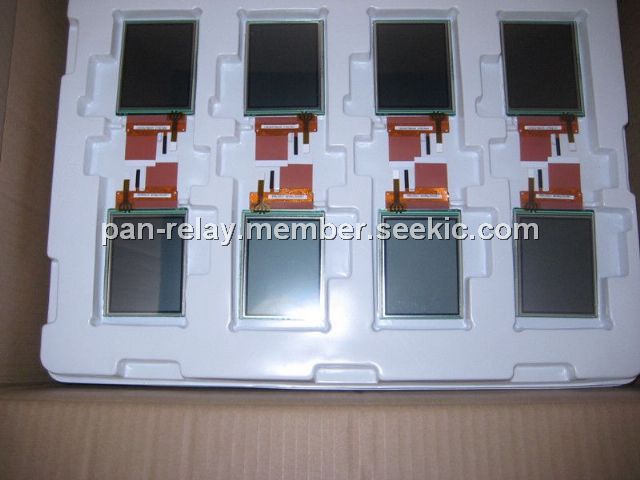

LQ035Q7DB02

LCD module, color reflective, active matrix, Thin Film Transistor, 53.64(H)×71.52(V) mm, -0.3 to +7.0 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $40.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $40.00~50.00

PartNumber:: LQ035Q7DB02

Brand:: Sharp Electrionic Components - Sharp | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:LQ035Q7DB02
US $40.00 - 50.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LQ035Q7DB02 is the color reflective and active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor), named AD-TFT(Advanced TFT). It is composed of a color TFT-LCD panel, driver ICs, an FPC, a back light and a back sealed casing.

Parametrics

LQ035Q7DB02 absolute maximum ratings: (1)Power supply(source/Analog): -0.3 to +7.0 V at Ta=25℃; (2)Power supply(source/Digital): -0.3 to +7.0 V at Ta=25℃; (3)Power supply (gate): -0.3 to +35.0 V at Ta=25℃; (4)Power supply (gate): -0.3 to +35.0 V at Ta=25℃; (5)Input voltage (Digital): -0.3 to VSHD+0.3 V at Ta=25℃; (6)Operating temperature (panel surface): -10 to 60 ℃; (7)Storage temperature: -25 to 70 ℃.

Features

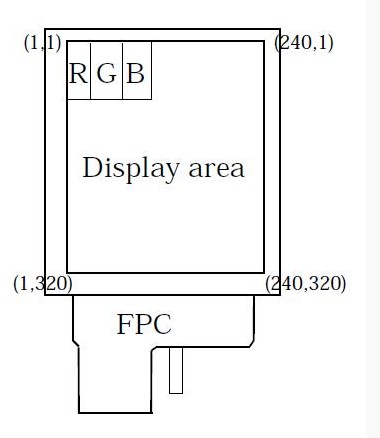

LQ035Q7DB02 features: (1)Screen size (Diagonal) 8.9 [3.52] Diagonal cm; (2)Display active area 53.64(H)×71.52(V) mm; (3)Pixel format 240(H)×320(V) pixels (1 pixel = R+G+B dots); (4)Pixel pitch 0.2235(H)×0.2235(V)mm; (5)Pixel configuration R,G,B vertical stripe; (6)Unit outline dimension 65.0(W)×85.0(H)×3.4 (D) mm.
