Product Summary

The PA1A-DC5V is a slim power relay. The applications of the device include programmable controllers, Output relays for measuring equipment, timers, counters and temperature controllers and Industrial equipment, office equipment.

Parametrics

PA1A-DC5V absolute maximum ratings: (1)ominal switching capacity: 5 A 250 V AC, 5 A 30 V DC; (2)Maximum switching power: 750 VA, 90 W; (3)Maximum switching voltage: 250 V AC, 110 V DC; (4)Max. switching current: 5 A; (5)Min. switching capacity: 100μA, 100 mV DC.

Features

PA1A-DC5V features: (1)Slim size (width 5 mm .197 inch, height 12.5 mm .492 inch) permits higher density mounting; (2)Wide switching capacity: Control from 100μA 100 mV to 5 A 250 V AC, 30 V DC; (3)High sensitivity: 120 mW (Nominal) (5 to 18 V DC type); (4)High surge voltage (4000 V) and high breakdown voltage (2000 V); (5)Shock & vibration resistance (functional): Min. 147m/s2 {15 G}; (6)SIL (single in line) terminal layout; (7)Reinforced according to IEC1131-2.

Diagrams

PA1A-DC5V schematic

PA1A-12V
PA1A-12V
Panasonic Electric Works
General Purpose / Industrial Relays 5A 12VDC SPST-NO NON-LATCHING
Data Sheet
0-1: $4.82
1-25: $4.43
25-50: $3.94
50-100: $3.34
PA1A-12V-Y1
PA1A-12V-Y1
Panasonic Electric Works
Relay Sockets & Hardware 1 Form A 12V 3A 250VAC 3A 30VDC
Data Sheet
0-1: $3.55
1-25: $3.18
25-50: $2.90
50-100: $2.47
PA1a-18V
PA1a-18V
Panasonic Electric Works
General Purpose / Industrial Relays 1 Form A 18V 3A 250VAC 3A 30VDC
Data Sheet
0-1: $5.02
1-25: $4.60
25-50: $4.10
50-100: $3.49
PA1A-24V
PA1A-24V
Panasonic Electric Works
General Purpose / Industrial Relays 5A 24VDC SPST-NO NON-LATCHING
Data Sheet
0-1: $4.82
1-25: $4.43
25-50: $3.94
50-100: $3.34
PA1A-5V
PA1A-5V
Panasonic Electric Works
General Purpose / Industrial Relays 5A 5VDC SPST-NO NON-LATCHING
Data Sheet
0-1: $4.81
1-25: $4.41
25-50: $3.94
50-100: $3.34
PA1A-5V-Y1
PA1A-5V-Y1
Panasonic Electric Works

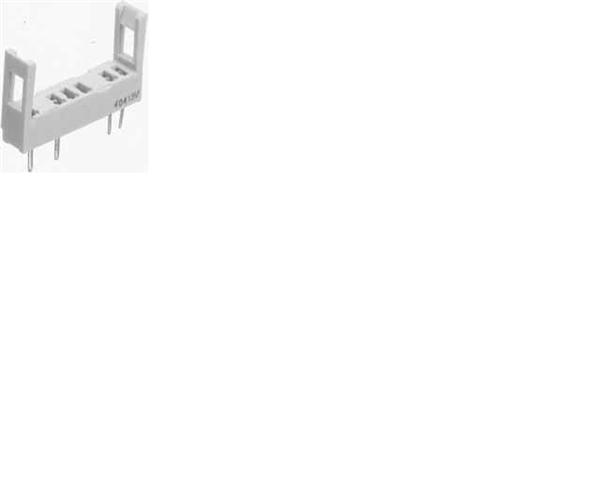

Relay Sockets & Hardware 1 Form A 5V 3A 250VAC 3A 30VDC
Data Sheet
0-1: $3.55
1-25: $3.25
25-50: $2.90
50-100: $2.47
