Product Summary

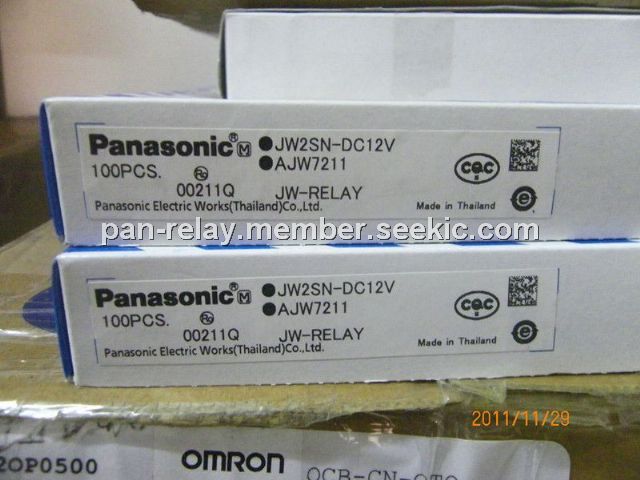

The JW2SN-DC12 is a compact PC board power relay.

Parametrics

JW2SN-DC12 absolute maximum ratings: (1)Nominal switching capacity: 5 A 250 V AC, 5 A 30 V DC; (2)Max. switching power: 1,250 VA, 150 W; (3)Max. switching voltage: 250 V AC, 30 V DC; (4)Max. switching current: 5 A; (5)Min. switching capacity: 100 mA, 5 V DC.

Features

JW2SN-DC12 features: (1)Miniature package with universal terminal footprint; (2)High dielectric withstanding for transient protection: 10,000 V surge in μs between coil and contact; (3)Sealed construction; (4)Class B coil insulation types available; (5)TV rated (TV-5) types available (only for 1 Form A type); (6)VDE, TUV, SEMKO, SEV, FIMKO, TV-5 also approved.

Diagrams

JW2SN-DC12 wiring diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
JW2SN-DC12V
JW2SN-DC12V
Panasonic Electric Works
General Purpose / Industrial Relays 5A 12VDC DPDT SEALED PCB
Data Sheet
0-1: $2.10
1-25: $1.98
25-50: $1.79
50-100: $1.55
JW2SN-DC12V-5
JW2SN-DC12V-5
Panasonic Electric Works
General Purpose / Industrial Relays JW relay Indium Contacts
Data Sheet
0-1: $2.83
1-25: $2.59
25-50: $2.32
50-100: $1.97
