G104SN02 V.1

Color Active Matrix Liquid Crystal Display, 3.0 to 3.6Volt, 240mA, AU Optronics Corp

Rated 5 Rating 5 | reviews | Write a review

Price:: US $120.00~240.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $120.00~240.00

PartNumber:: G104SN02 V.1

Brand:: AU Optronics Corp. - AUO | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-01

From Other Seller

Part Number:G104SN02 V.1
US $120.00 - 240.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

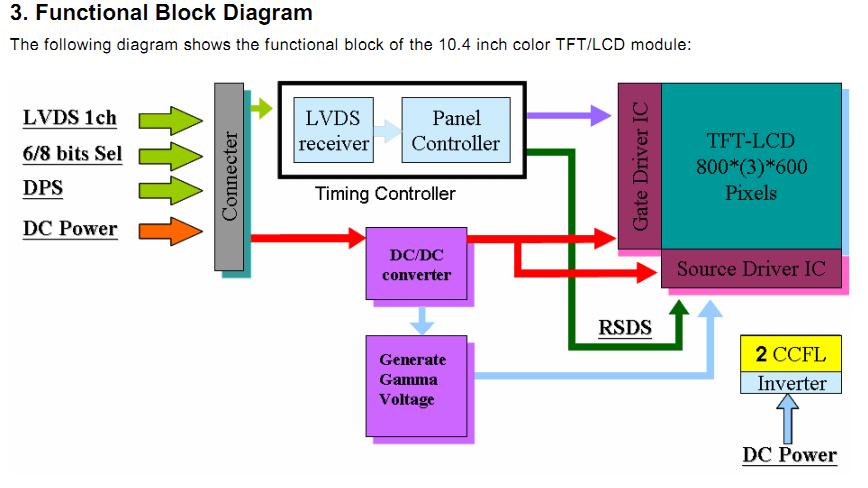

The G104SN02 V.1 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit, and a backlight system. The screen format is intended to support SVGA (800(H) x 600(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits). All input signals are LVDS interface compatible. Inverter card of backlight is not included. G104SN02 V.1 is designed for industrial display applications.

Parametrics

G104SN02 V.1 absolute maximum ratings: (1)Operating Temperature, TOP: -30 to +85℃; (2)Operation Humidity, HOP: 5 to 95 %RH; (3)Storage Temperature, TST: -30 to +85℃; (4)Storage Humidity, HST: 5 to 95 %RH.

Features

G104SN02 V.1 features: (1)VDD, Logic/LCD Drive Voltage: 3.0 to 3.6Volt, 3.3Volt typ; (2)IDD, VDD Current: 240mA; (3)PDD, VDD Power: 0.8 Watt; (4)Irush LCD Inrush Current: 1.5A; (5)VDDrp, Allowable Logic/LCD Drive Ripple Voltage: 100mV.
