Product Summary

The T92P7D22-24 is a Two-Pole, 30 Amp PC Board or Panel Mount Relay.

Parametrics

T92P7D22-24 absolute maximum ratings: (1)Voltage: 12 through 110VDC and 12 through 277VAC; (2)Nom. Power: AC Coil: 4.0VA; DC Coil: 1.7W; (3)Coil Temp. Rise: 35℃/W; (4)Max. Coil Temp.: 155℃; (5)Duty Cycle: Continuous.

Features

T92P7D22-24 features: (1)30A DPST-NO and DPDT switching capabilities; (2)Designed to control compressor loads to 3.5 tons, 25.3 FLA, 110 LRA; (3)Extended life – >300,000 operations at 30A, 240VAC (DC coil); >100,000 operations at 30A, 240VAC (AC coil); (4)Meets requirements of UL873 and UL508 spacings: .315 inch (8mm) through air, 375 inch (9.5mm) over surface; (5)Meets requirements of VDE 8mm spacing, 4kV dielectric coil-to-contacts; (6)Meets requirements of UL Class F construction; (7)UL approved for 600VAC switching (1.5HP); (8)Conforms to VDE 0435, 0631, and 0700; (9)New screw terminal version.

Diagrams

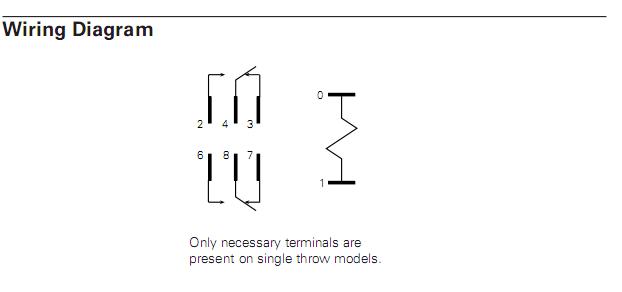

T92P7D22-24 wiring diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
T92P7D22-24
T92P7D22-24
TE Connectivity / P&B
General Purpose / Industrial Relays DPST-NO 30A 24VDC UL Class F ins
Data Sheet
0-1: $6.97
1-25: $6.19
25-50: $5.11
50-100: $4.75
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
T92P11A12-120
T92P11A12-120
TE Connectivity / P&B
General Purpose / Industrial Relays DPDT 30A 110/120VAC PWR PCB/PNL MNT RLY
Data Sheet
0-345: $5.39
T92P11A22-12
T92P11A22-12
TE Connectivity / P&B
General Purpose / Industrial Relays DPDT 20A 12VAC PWR PCB/PNL MNT RLY
Data Sheet
0-344: $5.35
T92P11A22-120
T92P11A22-120
TE Connectivity / P&B
General Purpose / Industrial Relays DPDT PNL MT 120VAC
Data Sheet
0-1: $7.39
1-10: $7.13
10-25: $6.63
25-50: $6.35
T92P11A22-208
T92P11A22-208
TE Connectivity / P&B
General Purpose / Industrial Relays DPDT 30A 208VAC PWR PCB/PNL MNT RLY
Data Sheet
0-1: $8.76
1-25: $7.67
25-50: $6.94
50-100: $5.93
T92P11A22-24
T92P11A22-24
TE Connectivity / P&B
General Purpose / Industrial Relays DPDT PNL MT 24VAC
Data Sheet
0-1: $7.95
1-25: $6.95
25-50: $6.29
50-100: $5.74
T92P11A22-240
T92P11A22-240
TE Connectivity / P&B
General Purpose / Industrial Relays DP PNL MT 25A 240VAC
Data Sheet
0-1: $9.92
1-10: $9.16
10-25: $9.05
25-50: $8.20
