Product Summary

The PTF20024 is a miniature power relay. Applications of the PTF20024 are panel boards, domestic appliances.


Parametrics

PTF20024 absolute maximum ratings: (1)Rated current: 10 A / 250 VAC; 15 A / 120 VAC; (2)Rated voltage / max.switching voltage AC: 240/400 VAC; (3)Maximum breaking capacity AC: 2500 VA / 250 VAC; 1800 VA / 120 VAC; (4)Limiting making capacity, max 20 ms: 20 A / 250 VAC; 30 A / 120 VAC; (5)Coil power DC coil: 0.75 W; (6)Rated insulation voltage: 250 V; (7)Ambient temperature range: -40 to +70℃.

Features

PTF20024 features: (1)2 pole 15 A, 2 CO contacts; (2)DC or AC coil; (3)Plug-in version, PCB or chassis mount version; (4)RoHS compliant (Directive 2002/95/EC).

Diagrams

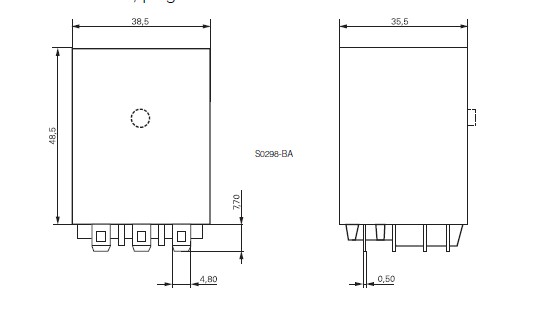

PTF20024 dimension
