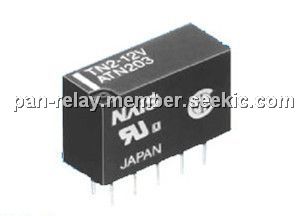

The TN2-12V is a 140mW slim polarized relay.
Parametrics
TN2-12V general specifications: (1)Nominal switching capacity (resistive load): 1 A 30 V DC, 0.5 A 125 V AC; (2)Max. switching power (resistive load):30 W, 62.5 VA; (3)Max. switching voltage:110 V DC,125 V AC; (4)Max. switching current:1 A; (5)Min. switching capacity (Reference value)#1:10 μA 10 mV DC; (6)Initial contact resistance, max.(By voltage drop 6 V DC 1A):60 mΩ; (7)Contact material:Gold-clad silver.
Features
TN2-12V features: (1)Small header area makes higher density mounting possible; (2)High sensitivity: 140 mW nominal ; (3)operating power (single side stable 3-12 V type); (4)Surge voltage withstand: 1500 V FCC Part 68; (5)Self-clinching terminal also available.
