Product Summary
The MT236230 is a multimode relay.Applications of the MT236230 are Mechanical engineering, plant control.
Parametrics
MT236230 absolute maximum ratings: (1)Rated current: 10 A 10 A 4 A; (2)Rated voltage / max.switching voltage AC: 240/400 VAC; (3)Maximum breaking capacity AC: 2500 VA 2500 VA 500 VA; (4)Limiting making capacity, max 20 ms: 20 A 20 A 8 A; (5)Rated coil power: 2.32/1.96 VA; (6)Rated insulation voltage: 250 V; (7)Ambient temperature range: DC coil -40 to +60℃; AC coil -40 to +50℃.
Features
MT236230 features: (1)2/3 pole 10A, 2 form C (CO) or 3 form C (CO) contacts; (2)DC and AC coils; (3)Mechanical indicator as standard; (4)Electrical indicator; (5)New test system with front operated finger protected; (6)push-to-test buttoand integral locking test tab; (7)White write opanel.

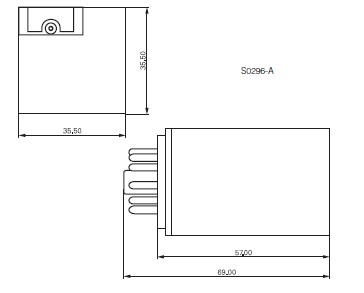

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MT236230 |
|
RELAY GEN PURPOSE DPDT 10A 230V |
Data Sheet |
|
|
||||||||||||
