Product Summary

The LC171W03-C4 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. The LC171W03-C4 is a transmissive type display operating in the normally black mode. It has a 17.1 inch diagonally measured active display area with WXGA resolution (768 vertical by 1280 horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, a palette of more than 16,7M(true) colors. The LC171W03-C4 has been designed to apply the 8 bit LVDS interface. The LC171W03-C4 is intended to support LCD TV, PCTV where high brightness, wide viewing angle, high color saturation, and high color are important.

Parametrics

LC171W03-C4 absolute maximum ratings: (1)power input voltage, VLCD: -0.3 to 14Vdc; (2)operating temperature, TOP: 0 to 50℃; (3)storage temperature, TST: -20 to 60℃; (4)operating ambient humidity, HOP: 10 to 90%RH; (5)storage humidity, HST: 10 to 90%RH.

Features

LC171W03-C4 features: (1)Surface Treatment: Hard coating(3H) & Anti-glare treatment of the front polarizer; (2)Display Operating Mode: Transmissive mode, normally black; (3)Weight: 2,500 g (Typ.) , 2,650 g (Max); (4)Power Consumption: Total 31.1 Watt(Typ.), ( 2.9 Watt@VLCD, 28.2 Watt@450cd/[LAMP=7mA]); (5)Viewing Angle (CR>10): Viewing Angle Free [R/L 176( Typ.), U/D 176(Typ.)]; (6)Luminance, White: 450 cd/m2 (Center 1 point (Typ.)); (7)Color Depth: 8-bits, 16,7M colors; (8)Pixel Format; (9)1280 horiz. By 768 vert. Pixels RGB stripe arrangement; (10)Pixel Pitch: 0.291mm x 0.291mm; (11)Outline Dimension: 400.0(H) x 258.0(V) x 22.0(D) mm(Typ.); (12)Active Screen Size: 17.1 inches(434.38mm) diagonal.

Diagrams

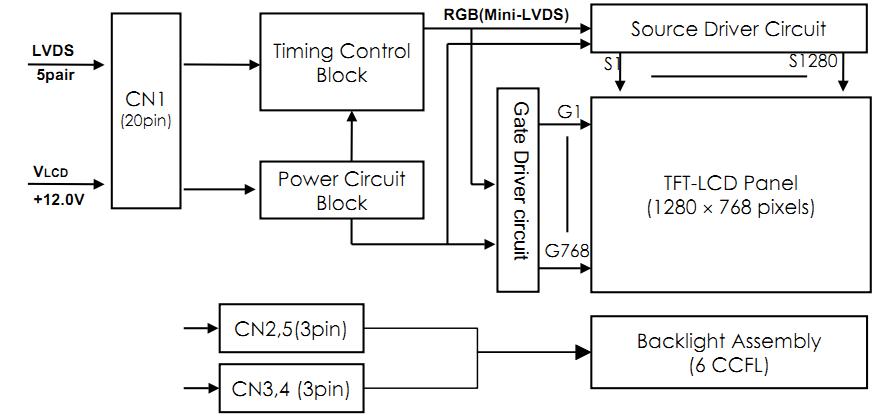

LC171W03-C4 block diagram

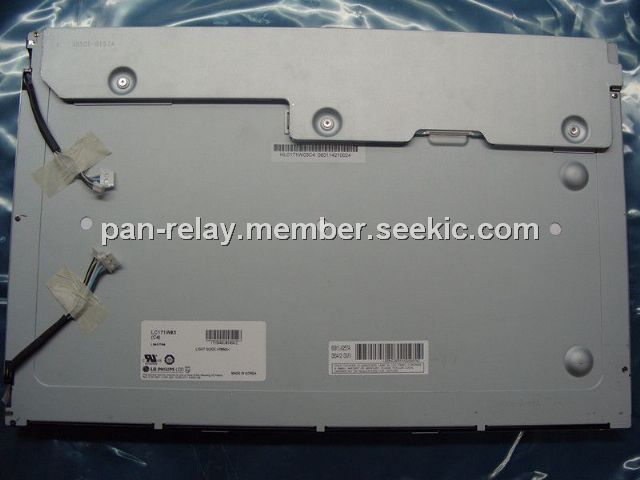

LC171W03
LC171W03
Other

Data Sheet
Negotiable
