Product Summary
The TQ2-L2-5V is a 15 dB low profile relay.
Parametrics
TQ2-L2-5V absolute maximum ratings: (1)Contact Form: 2 Form C (DPDT-BM); (2)Coil Voltage: 5 VDC; (3)Coil Current: 28.1 mA; (4)Coil Type: Single Side Stable; (5)Power Consumption: 140 mW; (6)Contact Carry Current: 1 A; (7)Termination Style: Solder Terminal; (8)Isolation: 15 dB at 1 GHz; (9)Insertion Loss: 0.6 dB at 1 GHz; (10)Maximum Switching Current: 1 A; (11)Contact Rating: 1 A at 30 VDC / 500 mA at 125 VAC; (12)Packaging: Ammo Pack.
Features
TQ2-L2-5V features: (1)High sensitivity: 2 Form C: 140 mW power consumption (single side stable type). 4 Form C: 280 mW power consumption (single side stable type); (2)Surge voltage withstand: 1500 V FCC Part 68; (3)Sealed construction allows automatic washing; (4)Self-clinching terminal also available; (5)M.B.B. contact types available.

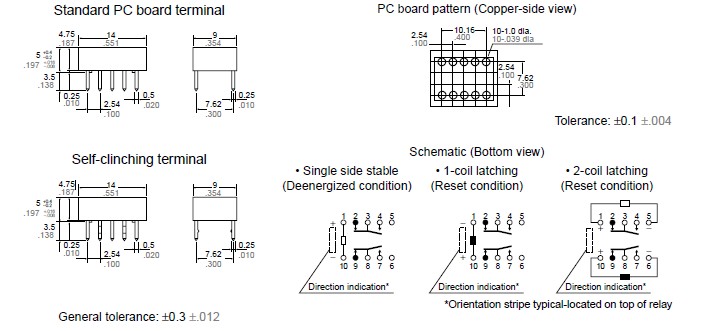

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TQ2-L2-5V |
Panasonic Electric Works |
Low Signal Relays - PCB 1A 5VDC DPDT 2 COIL LATCHING PCB |
Data Sheet |
|
|
||||||||||||
|
TQ2-L2-5V-1 |
|
RELAY TELECOM DPDT 1A 5V |
Data Sheet |
Negotiable |
|
||||||||||||
|
TQ2-L2-5V-3 |
Panasonic Electric Works |
Low Signal Relays - PCB 2 Form A 5V 30VDC PCB Terminal |
Data Sheet |
|
|
||||||||||||
