Product Summary

The LQ035Q7DB03 is a color reflective and active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor), named AD-TFT(Advanced TFT). It is composed of a color TFT-LCD panel, driver ICs, an FPC, a back light and a back sealed casing. The LQ035Q7DB03 isn’t composed control circuit. Graphics and texts can be displayed on a 240×3×320 dots panel with 262,144 colors by supplying. Optimum view angle is 6 o’clock. An inverted display mode is selective in the vertical or the horizontal direction.

Parametrics

LQ035Q7DB03 absolute maximum ratings: (1)Power supply(source/Analog), VSHA: -0.3 to +7.0 V at Ta=25℃; (2)Power supply(source/Digital), VSHD: -0.3 to +7.0 V at Ta=25℃; (3)Power supply (gate), VDD: -0.3 to +35.0 V at Ta=25℃; (4)Power supply (gate), VDD-VEE: -0.3 to +35.0 V at Ta=25℃; (5)Input voltage (Digital), VID: -0.3 to VSHD+0.3 V at Ta=25℃; (6)Operating temperature (panel surface),Topp: -10 to 60℃; (7)Storage temperature, Tstg: -25 to 70℃.

Features

LQ035Q7DB03 features: (1)Size-Width: 65.0 mm; (2)Lead-Free Status: Contains Lead; (3)Packaging: Box; (4)Size-Length: 85.0 mm; (5)Size-Height: 3.40 mm; (6)RoHS: Non-Compliant.

Diagrams

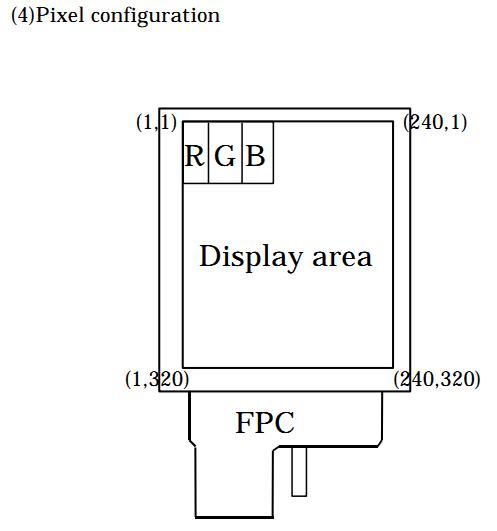

LQ035Q7DB03 Pixel configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

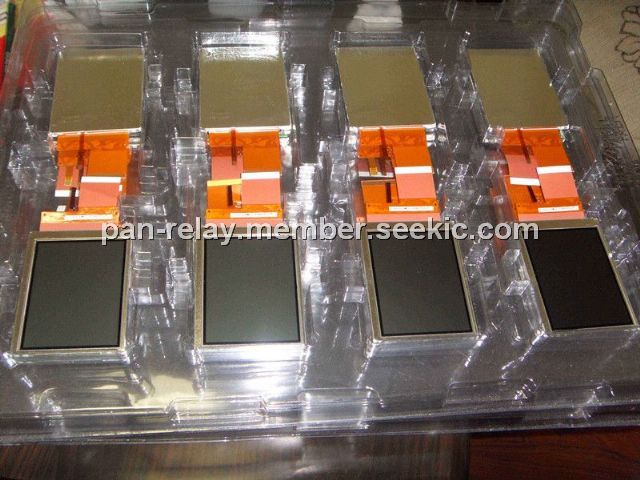

LQ035Q7DB03
LQ035Q7DB03

LCD TFT 3.5" 240X320 QVGA
Data Sheet
Negotiable
LQ035Q7DB03F
LQ035Q7DB03F
Sharp Microelectronics
TFT Displays & Accessories 3.5" QVGA ADTFT 240x230 LED B/L
Data Sheet
Negotiable
