Product Summary

The G5V-2-5VDC is a Miniature Relay for Signal Circuit.

Parametrics

G5V-2-5VDC absolute maximum ratings: (1)Load: Resistive load (cosφ = 1); (2)Rated load: 0.5 A at 125 VAC; 2 A at 30 VDC 0.5 A at 125 VAC; 1 A at 24 VDC; (3)Contact material: Ag + Au-clad; (4)Rated carry current: 2 A; (5)Max. switching voltage 125 VAC, 125 VDC; (6)Max. switching current: 2 A 1 A; (7)Max. switching power: 62.5 VA, 60 W 62.5 VA, 24 W; (8)Failure rate (reference value): 0.01 mA at 10 mVDC.

Features

G5V-2-5VDC features: (1)Wide switching power of 10 μA to 2 A; (2)High dielectric strength coil-contacts:1,000 VAC; open contacts: 750 VAC; (3)Conforms to FCC Part 68 requirements; (4)Ag + Au clad bifurcated crossbar contacts and fully sealed for high contact reliability.; (5)New 150-mW relays with high-sensitivity.

Diagrams

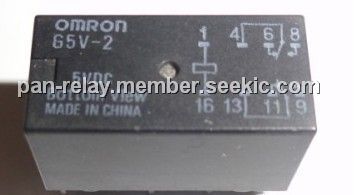

G5V-2-5VDC diagram
