Product Summary

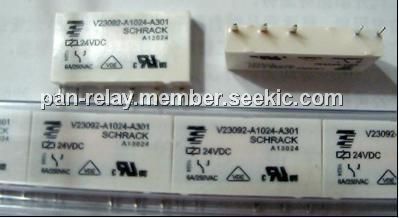

The V23092A1024A301 is a slim PCB relay SNR. Applications of the V23092A1024A301 are centralized and decentralized heating control, extremely narrow interface elements, interface technology, timers, PLCs, I/O modules, I/O-ports.
Parametrics
V23092A1024A301 absolute maximum ratings: (1)Rated current: 6 A; (2)Rated voltage / max.switching voltage AC: 240/400 VAC; (3)Maximum breaking capacity AC: 1500 VA; (4)Limiting making capacity, max 4 s, duty factor 10%: 10 A; (5)Rated coil voltage range DC coil: 5 to 60 VDC; (6)Coil power DC coil typ.: 170 mW; (7)Operative range: 2.
Features
V23092A1024A301 features: (1)1 pole 6 A, 1 CO or 1 NO contact; (2)Only 5 mm wide; (3)Sensitive coil: 170 mW; (4)4 kV coil-contact, 6 / 8 mm clearance/creepage, NO version with 8 / 8 mm clearance/creepage on request; (5)Reinforced insulation (protection class II); (6)Allows high function-/packing density; (7)Cadmium-free contacts, AgNi 90/10 for AC-loads; (8)RoHS compliant (Directive 2002/95/EC) as per product date code 0404.

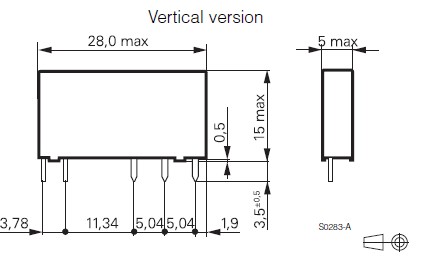

Diagrams
