Product Summary

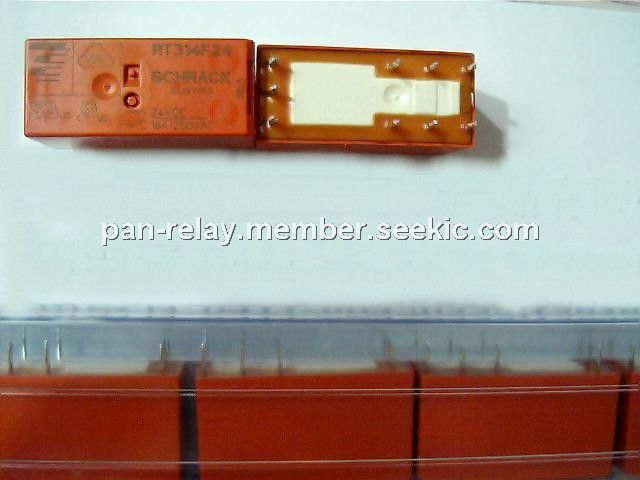

The RT314F24 is a power PCB relay. Applications of the RT314F24 are battery powered equipment or applications with memory function.
Parametrics
RT314F24 absolute maximum ratings: (1)Rated current: 16 A; (2)Rated voltage / max.switching voltage AC: 240/400 VAC; (3)Limiting continuous current: 20 A; (4)Maximum breaking capacity AC: 4000 VA; (5)Limiting making capacity, max 4 s, duty factor 10%: 30 A; (6)Coil power: typ 400 mW; typ 600 mW; (7)Rated insulation voltage: 250 V; (8)Ambient temperature range 1 coil -10 to +85℃; 2 coils -40 to +85℃.
Features
RT314F24 features: (1)1 pole 16 A, 1 CO contact; (2)Polarized bistable version with 1 or 2 coils; (3)5 kV / 10 mm coil-contact; (4)Reinforced insulation; (5)RoHS compliant (Directive 2002 / 95 / EC) as per product date code 0413.

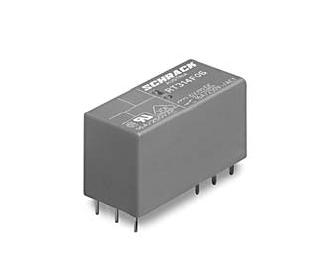

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RT314F24 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays SPDT 24VDC 16Amps |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
RT314005 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays 16 AMP 5VDC SPDT PCB RELAY |
Data Sheet |
|
|
||||||||||||
 |
RT314005F |
TE Connectivity / P&B |
General Purpose / Industrial Relays SPDT 16A 5VDC 62Ohm PCB MINIATURE RELAY |
Data Sheet |
|
|
||||||||||||
|
RT314006 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays 16 AMP 6VDC SPDT PCB RELAY |
Data Sheet |
|
|
||||||||||||
|
RT314012 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays PCB Miniature 12VDC 16A 1FormCContact |
Data Sheet |
|
|
||||||||||||
 |
RT314012F |
TE Connectivity / P&B |
General Purpose / Industrial Relays SPDT 16 A 12VDC |
Data Sheet |
|
|
||||||||||||
|
RT314024 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays SPDT 16 A 24VDC |
Data Sheet |
|
|
||||||||||||
