Product Summary

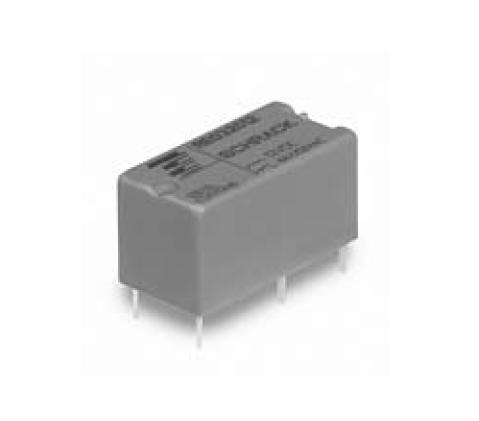

The RE030005 is the Miniature PCB relay which is used in timers, temperature control, I/O cards, white goods.

Parametrics

RE030005 absolute maximum ratings: (1)Rated voltage: 5 VDC; (2)Operate voltage: 3.5 VDC; (3)Release voltage: 0.5 VDC; (4)Coil resistance: 125+10% Ohm; (5)Rated coil voltage: 200 mW; (6)Ambient temperature range: -40 to +70℃, -40 to +85℃ at 4A; (7)Operate- / release time: 5/1 ms; (8)Bounce time NO / NC contact 1 ms; (9)Resistance to soldering heat wash-tight version: 260℃ / 5 s.

Features

RE030005 features: (1)1 pole 6 A, 1NO contact; (2)Sensitive coil 200 mW; (3)4 kV coil-contact; (4)Optimized height 10,6 mm; (5)PCB area 200 mm2; (6)Wash tight; (7)Plastic materials according to IEC60335-1 (domestic appliances); (8)RoHS compliant (Directive 2002/95/EC)as per product date code 0352.

Diagrams

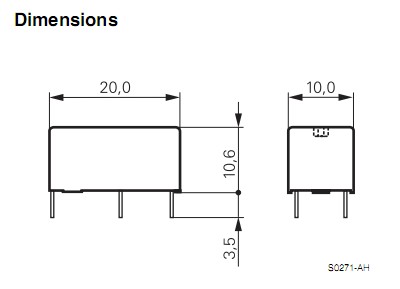

RE030005 dimensions
