Product Summary


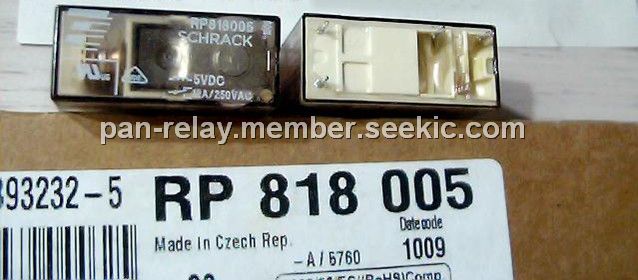

The RP818005 is a power PCB relay. Applications of the RP818005 are domestic appliances, UPSs.


Parametrics

RP818005 absolute maximum ratings: (1)Rated current: 8 A (UL: 10 A); (2)Rated voltage / max.breaking voltage AC: 250 Vac / 440 Vac; (3)Maximum breaking capacity AC: 2000 VA; (4)Make current (max. 4 s at duty cycle 10%): 14 A; (5)Nominal coil power: 500 mW; (6)Voltage rating: 250 V; (7)Ambient temperature: -40 to +70 ℃.

Features

RP818005 features: (1)2 C/O or 2 N/O contacts; (2)4 kV / 8 mm coil-contact; (3)Twin contacts available; (4)PCB-sockets; (5)Versions with Ag, or AgNi 0.15 contact material: RoHS compliant; (6)(Directive 2002 / 95 / EC) as per product date code 0404.

Diagrams

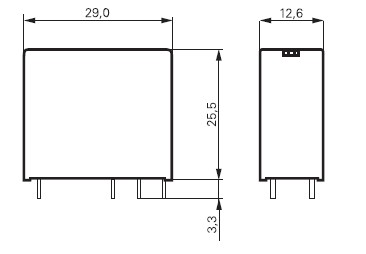

RP818005 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RP818005
RP818005

RELAY GEN PURPOSE SPDT 12A 5V
Data Sheet
0-500: $1.90
