Product Summary

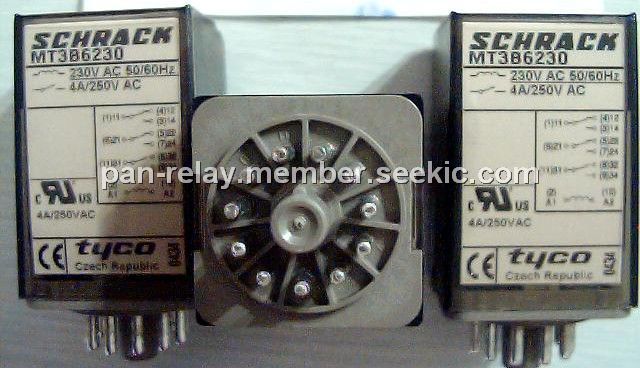

The MT3B6230 is a multimode relay. Typical applications of the are mechanical engineering, plant control.
Parametrics
MT3B6230 absolute maximum ratings: (1)Rated voltage 240VAC; (2)Max. switching voltage 400VAC; (3)Rated current 10A 10A 4A; (4)Limiting making current, max. 20ms 20A 20A 8A; (5)Limiting breaking current 10A 10A 4A; (6)Switching power 2500VA 2500VA 500 VA; (7)Ambient temperature: DC coil -40 to +60℃; AC coil -40 to +50℃.
Features
MT3B6230 features: (1)2/3 pole 10A, 2 form C (CO) or 3 form C (CO) contacts; (2)DC and AC coils; (3)Mechanical indicator as standard; (4)Electrical indicator; (5)New test system with front operated finger protected push-to-test buttoand integral locking test tab; (6)White write opanel.

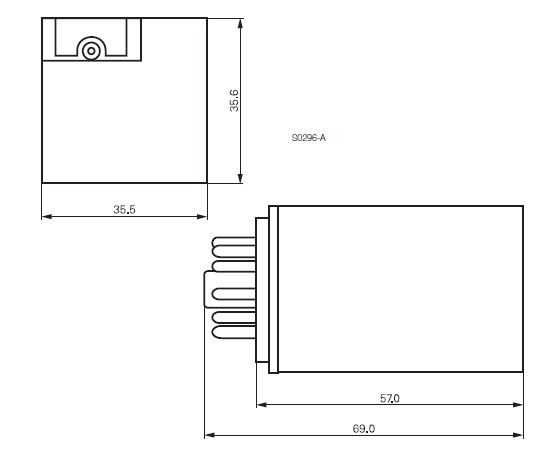

Diagrams
 |
