Product Summary

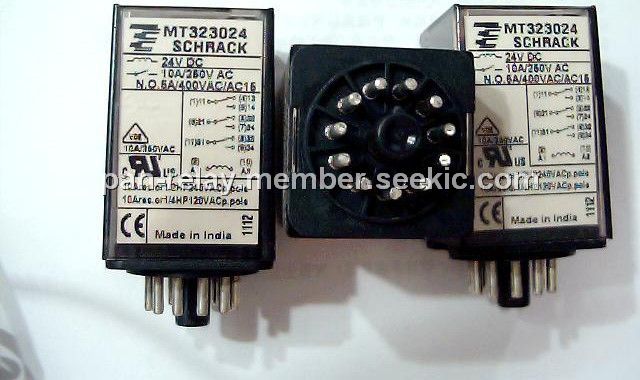

The MT323024 is a multimode relay.Applications of the MT323024 are Mechanical engineering, plant control.
Parametrics
MT323024 absolute maximum ratings: (1)Rated current: 10 A 10 A 4 A; (2)Rated voltage / max.switching voltage AC: 240/400 VAC; (3)Maximum breaking capacity AC: 2500 VA 2500 VA 500 VA; (4)Limiting making capacity, max 20 ms: 20 A 20 A 8 A; (5)Coil power DC coil: 1.2 W; (6)Rated insulation voltage: 250 V; (7)Ambient temperature range: DC coil -40...+60℃; AC coil -45...+50℃.
Features
MT323024 features: (1)2 / 3 pole 10 A, 2 CO or 3 CO contacts; (2)DC and AC coils; (3)Mechanical indicator as standard; (4)Electrical indicator; (5)New test system with front operated finger protected push-to-test button and integral locking test tab; (6)White write on panel; (7)RoHS compliant (Directive 2002/95/EC) as per product date code 0415.

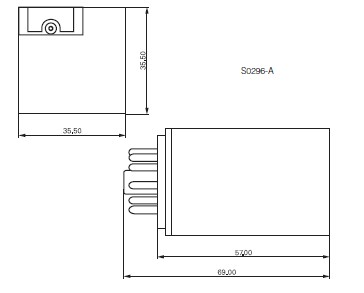

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MT323024 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays FormC 3PDT 3C/O |
Data Sheet |
|
|
||||||||||||
