Product Summary

The G5V-2-12VDC is a PCB relay.

Parametrics

G5V-2-12VDC absolute maximum ratings: (1)Rated current: 41.7 mA; (2)Coil resistance: 288Ω; (3)Coil inductance (H) (ref. value), Armature OFF: 0.47; Armature ON: 0.74; (4)Must operate voltage: 75% max. of rated voltage; (5)Must release voltage: 5% min. of rated voltage; (6)Max. voltage: 120% of rated voltage at 23℃; (7)Power consumption: Approx. 500 mW.

Features

G5V-2-12VDC features: (1)Wide switching power of 10 μA to 2 A; (2)High dielectric strength coil-contacts:1,000 VAC; open contacts: 750 VAC; (3)Conforms to FCC Part 68 requirements; (4)Ag + Au clad bifurcated crossbar contacts and fully sealed for high contact reliability.; (5)New 150-mW relays with high-sensitivity.

Diagrams

G5V-2-12VDC dimensions

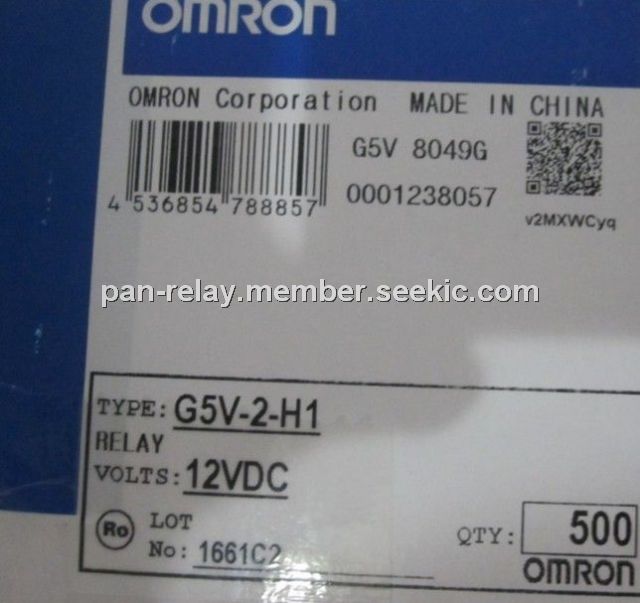

G5V-2-H1 DC12
G5V-2-H1 DC12

RELAY GEN PURPOSE DPDT 1A 12V
Data Sheet
0-1: $1.99
1-25: $1.79
25-50: $1.59
50-100: $1.43
100-250: $1.35
250-500: $1.19
500-1000: $1.07
G5V-2-H1 DC24
G5V-2-H1 DC24

RELAY GEN PURPOSE DPDT 1A 24V
Data Sheet
0-1: $1.99
1-25: $1.79
25-50: $1.59
50-100: $1.43
100-250: $1.35
250-500: $1.19
500-1000: $1.07
G5V-2-H1 DC48
G5V-2-H1 DC48

RELAY GEN PURPOSE DPDT 1A 48V
Data Sheet
0-1: $2.38
1-25: $2.14
25-50: $1.90
50-100: $1.71
100-250: $1.62
250-500: $1.43
500-1000: $1.29
G5V-2-H1 DC5
G5V-2-H1 DC5

RELAY GENERAL PURPOSE DPDT 1A 5V
Data Sheet
0-1: $1.99
1-25: $1.79
25-50: $1.59
50-100: $1.43
100-250: $1.35
250-500: $1.19
500-1000: $1.07
G5V-2-H1 DC6
G5V-2-H1 DC6

RELAY GENERAL PURPOSE DPDT 1A 6V
Data Sheet
0-1: $1.99
1-25: $1.79
25-50: $1.59
50-100: $1.43
100-250: $1.35
250-500: $1.19
500-1000: $1.07
G5V-2-H1 DC9
G5V-2-H1 DC9

RELAY GENERAL PURPOSE DPDT 1A 9V
Data Sheet
0-1: $1.99
1-25: $1.79
25-50: $1.59
50-100: $1.43
100-250: $1.35
250-500: $1.19
500-1000: $1.07
