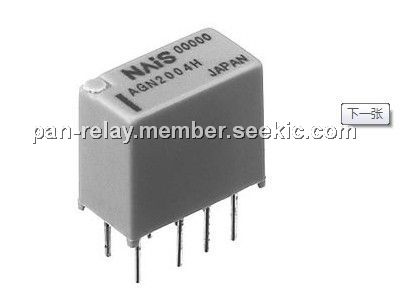

Product Summary

The AGN2004H is a GN-relay which widely applied in telephone exchange, transmission equipment, communications device, measurement device, home appliances, and audio/visual equipment, handheld and portable product.

Parametrics

AGN2004H absolute maximum ratings: (1)Arrangement: 2 Form C; (2)Initial contact resistance, max.(By voltage drop 4.5V DC 1A ): 100mW; (3)Contact material Stationary: AgPd+Au clad; (4)Movable: AgPd; (5)Nominal switching capacity(resistive load): 1A 30V DC, 0.3A 125V AC; (6)Max. switching power(resistive load): 30W, 37.5V A; (7)Max. switching voltage: 110V DC, 125V AC; (8)Max. switching current: 1A.

Features

AGN2004H features: (1)Compact slim body saves space; (2)Outstanding surge resistance; (3)The use of twin crossbar contacts ensures high contact reliability; (4)Increased packaging density; (5)Nominal operating power: 140 mW; (6)Outstanding vibration and shock resistance.

Diagrams

AGN2004H package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AGN2004H
AGN2004H

Panasonic Electric Works

Low Signal Relays - PCB 1A 4.5VDC DPDT NON-LATCHING PCB

Data Sheet

0-1: $2.15
1-25: $2.08
25-50: $1.97
50-100: $1.76
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AGN20003
AGN20003

Panasonic Electric Works

Low Signal Relays - PCB 1A 3VDC DPDT NON-LATCHING PCB

Data Sheet

0-1: $2.34
1-25: $2.08
25-50: $1.97
50-100: $1.76
AGN20006
AGN20006

Panasonic Electric Works

Low Signal Relays - PCB 2 Form C 1 Form A 30VDC PCB 6V

Data Sheet

0-1: $2.34
1-25: $2.08
25-50: $1.97
50-100: $1.76
AGN20009
AGN20009

Panasonic Electric Works

Low Signal Relays - PCB 2 Form C 1 Form A 30VDC PCB 9v

Data Sheet

0-1: $2.54
1-25: $2.32
25-50: $2.08
50-100: $1.76
AGN20012
AGN20012

Panasonic Electric Works

Low Signal Relays - PCB 1A 12VDC DPDT NON-LATCHING PCB

Data Sheet

0-1: $2.15
1-25: $2.08
25-50: $1.96
50-100: $1.76
AGN2001H
AGN2001H

Panasonic Electric Works

Low Signal Relays - PCB 2 Form C 1 Form A 30VDC PCB 1.5V

Data Sheet

0-1: $2.42
1-25: $2.21
25-50: $1.98
50-100: $1.68
AGN20024
AGN20024

Panasonic Electric Works

Low Signal Relays - PCB 1A 24VDC DPDT NON-LATCHING PCB

Data Sheet

0-1: $2.75
1-25: $2.45
25-50: $2.33
50-100: $2.08
