Product Summary

The V23050A1024A542 is a Safety Relay. It is suitable for Emergency shut-off, press control, machine control, elevator and escalator control, safety modules.

Parametrics

V23050A1024A542 absolute maximum ratings: (1)Rated coil voltage range DC coil: 5 to 110 VDC; (2)Coil power DC coil: appr. 1200 mW; (3)Operative range: 2; (4)Contact set: single contact, forcibly guided; type A according to EN 50205; (5)Type of interruption: micro disconnection; (6)Rated current: 8 A; (7)Rated voltage / max.switching voltage AC: 240 / 400 VAC; (8)Maximum breaking capacity AC: 2000 VA.

Features

V23050A1024A542 features: (1)6 pole safety relay with either 4 NO+2 NC or 3 NO+3 NC or 5 NO+1 NC contacts ; (2)Forcibly guided contacts according to EN 50205; (3)Rated current 8 A; (4)6 kV surge resistance between poles; (5)RoHS compliant (Directive 2002/95/EC) as perproduct date code 0407.

Diagrams

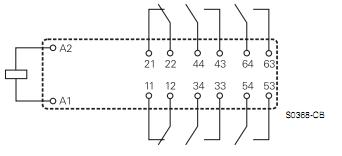

V23050A1024A542 block diagram
