Product Summary

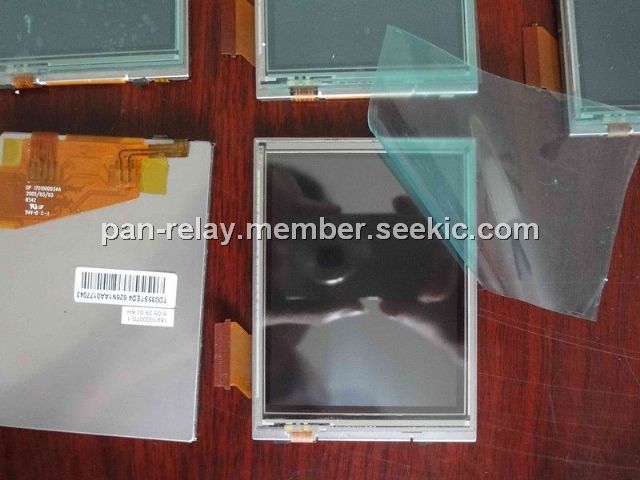

The TD035STED4 is a 3.5 inch LCD module. It is the Transflective active matrix color TFT LCD module. LTPS (Low Temperature Poly Silicon) TFT technology is used and it’ s COG design. The TD035STED4 LCD module includes touch panel, backlight and TFT LCD panel with minimal external circuits and components required.
Parametrics
TD035STED4 absolute maximum ratings: (1)Logic Supply Voltage, DVDD: -0.3 to +3.6 V; AVDD: -0.3 to 6V Power Supply for H/V Driver, VGH: -0.3 to +19V; VVEE: -5.8 to -5.2V; (2)Touch Panel Operation Voltage, VTouch: 5.5V; (3)Backlight LED forward Voltage, VF: 4V; (4)Backlight LED reverse Voltage VR: 5V; (5)Backlight LED forward current (Ta=25℃), IF: 30mA; (6)Operating Temperature, Topr: -10 to +60℃; (7)Storage Temperature, Tstg: -20 to +70℃.
Features
TD035STED4 features: (1)3.5 inch LCD module; (2)It is the Transflective active matrix color TFT LCD module; (3)LTPS (Low Temperature Poly Silicon) TFT technology is used and it’ s COG design; (4)The LCD module includes touch panel, backlight and TFT LCD panel with minimal external circuits and components required.

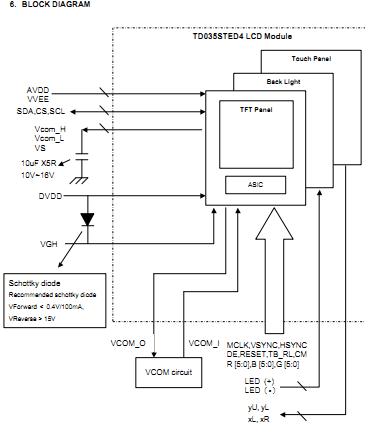

Diagrams
 |
