Product Summary

The PT580024 is a miniature relay. Applications of the PTF20024 are universal use in control and automation.


Parametrics

PT580024 absolute maximum ratings: (1)Rated current: 12 A ; (2)Rated voltage / max.switching voltage AC: 240/400 VAC ; (3)Maximum breaking capacity AC: 3000 VA; (4)Limiting making capacity, max 20 ms: 24 A; (5)Coil power DC coil: 0.75 mW; (6)Rated insulation voltage: 250 V; (7)Ambient temperature range: -40 to +70℃.

Features

PT580024 features: (1)2 pole 12 A, 3 pole 10 A or 4 pole 6 A, 2, 3 or 4 CO contacts; (2)DC- or AC-coil; (3)Switching performance up to 3000 VA; (4)Relay height 29 mm; (5)Mechanical indicator, optional LED and protection diode; (6)Manual test tab, optionally lockable.; (7)White marking tabs; (8)RoHS compliant (Directive 2002/95/EC).

Diagrams

PT580024 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PT580024
PT580024
TE Connectivity / Schrack

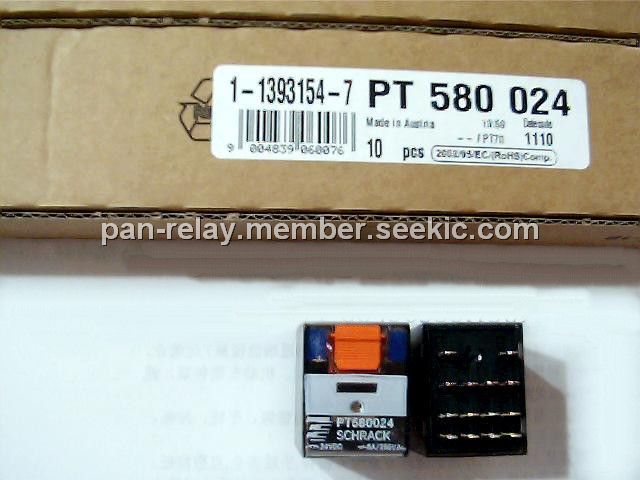

General Purpose / Industrial Relays 24V 6A 4CO THT INDUSTRY RELAY
Data Sheet
0-1: $7.55
1-25: $6.61
25-50: $5.97
50-100: $4.72
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PT5800
PT5800
Other

Data Sheet
Negotiable
PT580024
PT580024
TE Connectivity / Schrack
General Purpose / Industrial Relays 24V 6A 4CO THT INDUSTRY RELAY
Data Sheet
0-1: $7.55
1-25: $6.61
25-50: $5.97
50-100: $4.72
