Product Summary

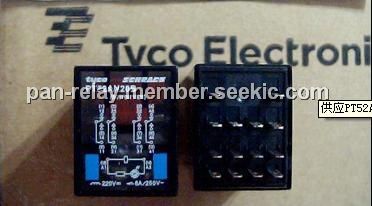

The PT52AN20B is a miniature relay.


Parametrics

PT52AN20B absolute maximum ratings: (1)Rated Current: 6A; (2)Rated Voltage: 250VAC; (3)Maximum Switching Voltage: 250VAC; (4)Maximum Make Current: 12A; (5)Maximum Breaking Capacity AC: 1,500VA; (6)Coil power DC coil: 0.75W; (7)Temperature Range: Storage: -45℃ to +80℃; Operating: -45℃ to +70℃.

Features

PT52AN20B features: (1)Sensitive coil (750mW / 0.85VA); (2)2 Form C and 4 Form C contacts rated 12A and 6A, respectively; (3)Advanced design has no braided wire, no welds or solder joints in the contact area and fewer parts for enhanced reliability; (4)AC and DC coils; (5)Optional integral LED (green for DC coil, red for AC coil), protection; (6)diode, resistor-capacitor network available; (7)Mounted height is approximately 1.42 in (36 mm); (8)Environmentally friendly, cadmium-free contacts.

Diagrams

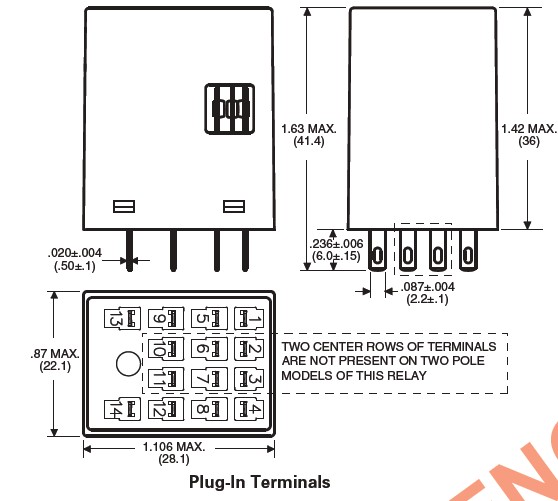

PT52AN20B dimension
