Product Summary

The PT22AS15 is a miniature relay.

Parametrics

PT22AS15 absolute maximum ratings: (1)Rated Current: 12A; (2)Rated Voltage: 250VAC; (3)Maximum Switching Voltage: 440VAC; (4)Maximum Make Current: 24A; (5)Maximum Breaking Capacity AC: 3000VA; (6)Coil power DC coil: 0.75W; (7)Temperature Range: Storage: -45℃ to +80℃; Operating: -45℃ to +70℃.

Features

PT22AS15 features: (1)Sensitive coil (750mW / 0.85VA); (2)2 Form C and 4 Form C contacts rated 12A and 6A, respectively; (3)Advanced design has no braided wire, no welds or solder joints in the contact area and fewer parts for enhanced reliability; (4)AC and DC coils; (5)Optional integral LED (green for DC coil, red for AC coil), protection; (6)diode, resistor-capacitor network available; (7)Mounted height is approximately 1.42 in (36 mm); (8)Environmentally friendly, cadmium-free contacts.


Diagrams

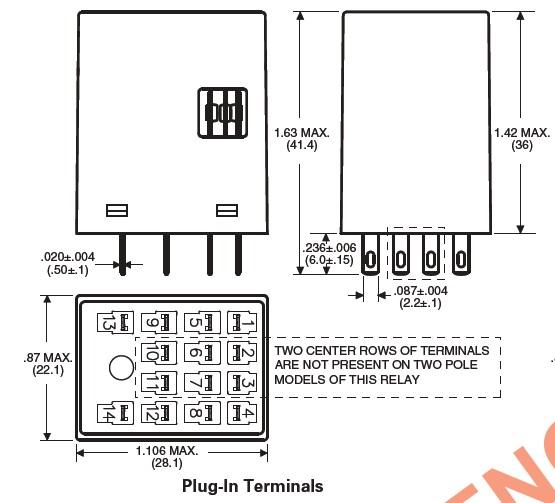

PT22AS15 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

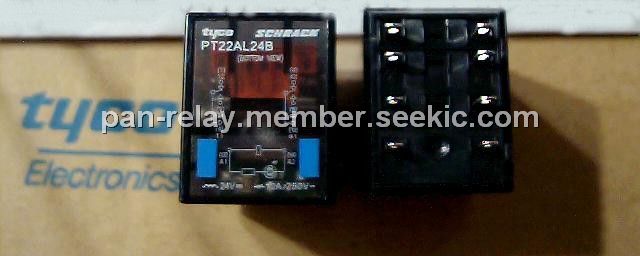

PT22AL24B
PT22AL24B

RELAY GEN PURPOSE DPDT 12A 24V
Data Sheet
0-250: $3.00
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PT22B024B
PT22B024B
TE Connectivity
General Purpose / Industrial Relays 2 Form C PCB 24VDC
Data Sheet
0-1: $4.02
1-25: $3.52
25-50: $3.18
50-100: $2.75
PT22AR12B
PT22AR12B
TE Connectivity
General Purpose / Industrial Relays 2 Form C plug-in 12VAC LED
Data Sheet
0-1: $4.33
1-25: $3.82
25-50: $3.43
50-100: $2.97
PT22AR24B
PT22AR24B
TE Connectivity
General Purpose / Industrial Relays 2 Form C plug-in 24VAC LED
Data Sheet
0-1: $4.31
1-25: $3.80
25-50: $3.41
50-100: $2.95
PT22AS15B
PT22AS15B
TE Connectivity
General Purpose / Industrial Relays 2 Form C plug-in 115VAC LED
Data Sheet
Negotiable
PT22B012B
PT22B012B
TE Connectivity
General Purpose / Industrial Relays 2 Form C PCB 12VDC
Data Sheet
Negotiable
PT22A024B
PT22A024B
TE Connectivity
General Purpose / Industrial Relays 2 Form C plug-in 24VDC
Data Sheet
Negotiable
